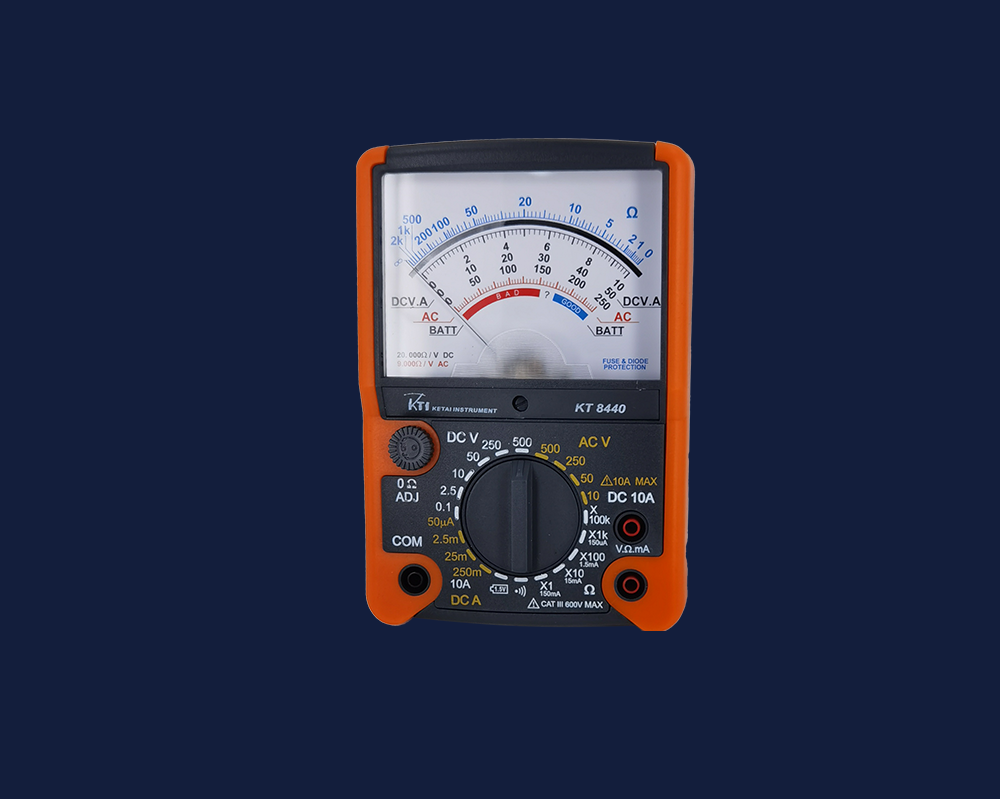

KT8440 High Accuracy Analogue Multimeter
HIGH SENSITIVITY AND ACCURACY ANALOG MULTIMETER
MOST UPDATED DESIGN AND GREAT HANDLE FEELING

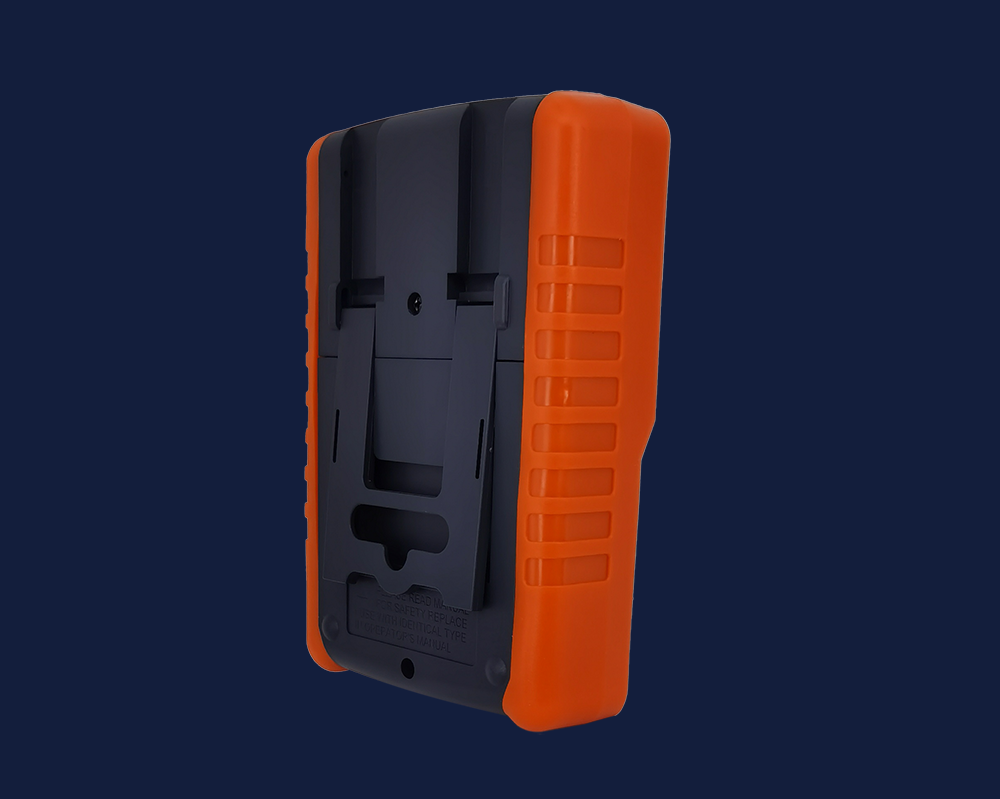

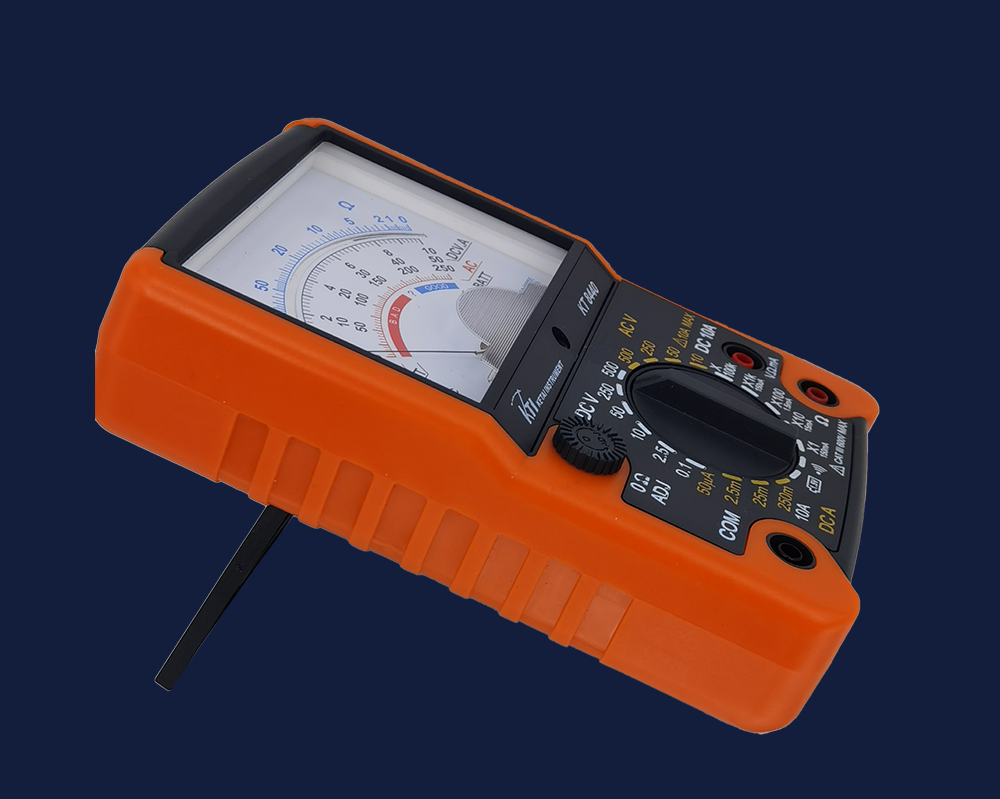

LARGE DISPLAY AND HANGING SUPPORTER
KT8400 series pointer multimeter
Meets the European standard CAT III 600V and has passed LVD, EMC, and ROSH certifications, creating conditions for entering the European market.
IntroductionParametersUse InstructionAttention
● 20 ranges in 5 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 10A
● Resistance measurement up to 200MΩ
● Diode and continuity test

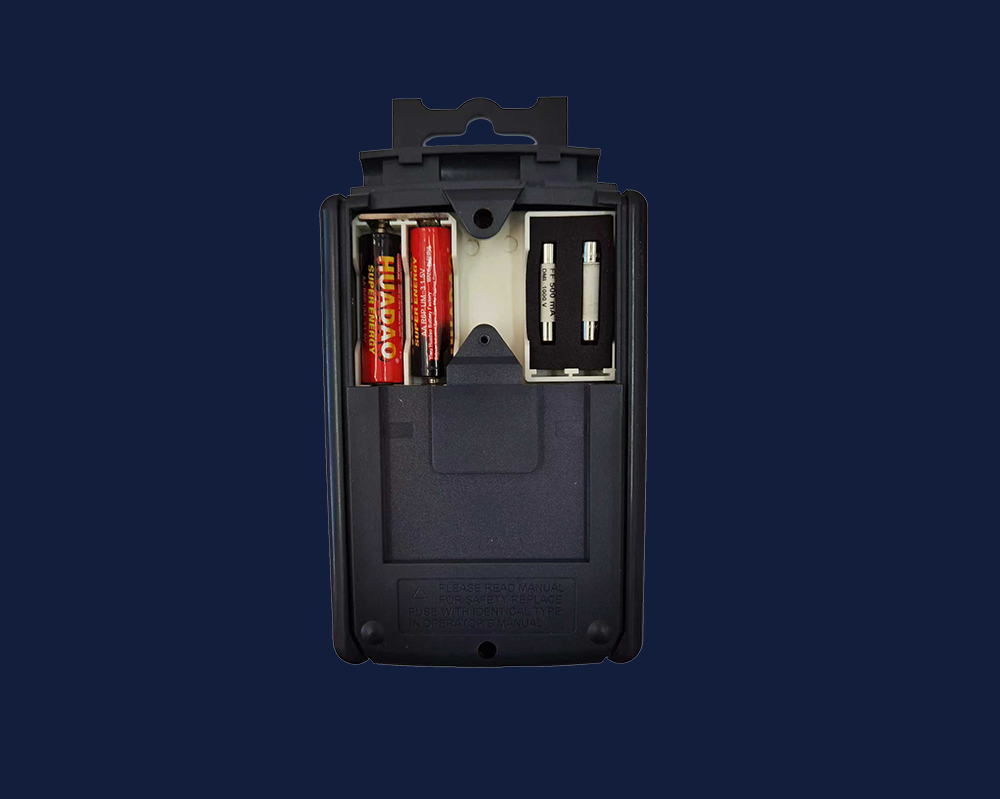

● Fuse: F500mA/250V F10A/250V
● Input impedence: 20KΩ/DCV/ 9KΩ/ACV
● Accessories included: 1.5V batteryX2, test leads,English manual, giftbox
SPECIFICATIONS
DCV 0.1~500V(±3% fs)
ACV 10~500V(±3% fs)
DCA 50u~10A(±3% fs)
Ω 2K~200MΩ(±3% full arc)
Continuity& Buzzer √
dB -10~62dB(0dB 1Mw/600Ω)
Diode RX10 L1 15mA LV3V
Size 158X108X42mm
weight Approx. 390g included battery
This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
