● 0~50Ω low resisitance measurement
● -25V~0~+25VDC voltage measurement
● 20 ranges in 8 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 500mA
● Resistance measurement up to 200MΩ
● Battery test
● Buzzer and continuity test
● Fuse: F500mA/250V F10A/250V
● Input impedence: 20KΩ/DCV/ 9KΩ/ACV
● Accessories included: 1.5V batteryX1, 9V batteryX1,test leads, English manual, giftbox
SPECIFICATIONS
DCV 0.1~500V(±3% fs)
ACV 2.5~500V(±4% fs)
DCA 50m~500mA(±3% fs)
Ω 2K~200MΩ(±3% full arc)
Battery 1.5V and 9V
Continuity& Buzzer √
Low resistance 0~50Ω
± Voltage ±5V and ±25V
Diode RX10 L1 15mA LV3V
Size 158X108X42mm
weight Approx. 390g included battery
The structure features:
Great handle feeling for the side sliding protective holster

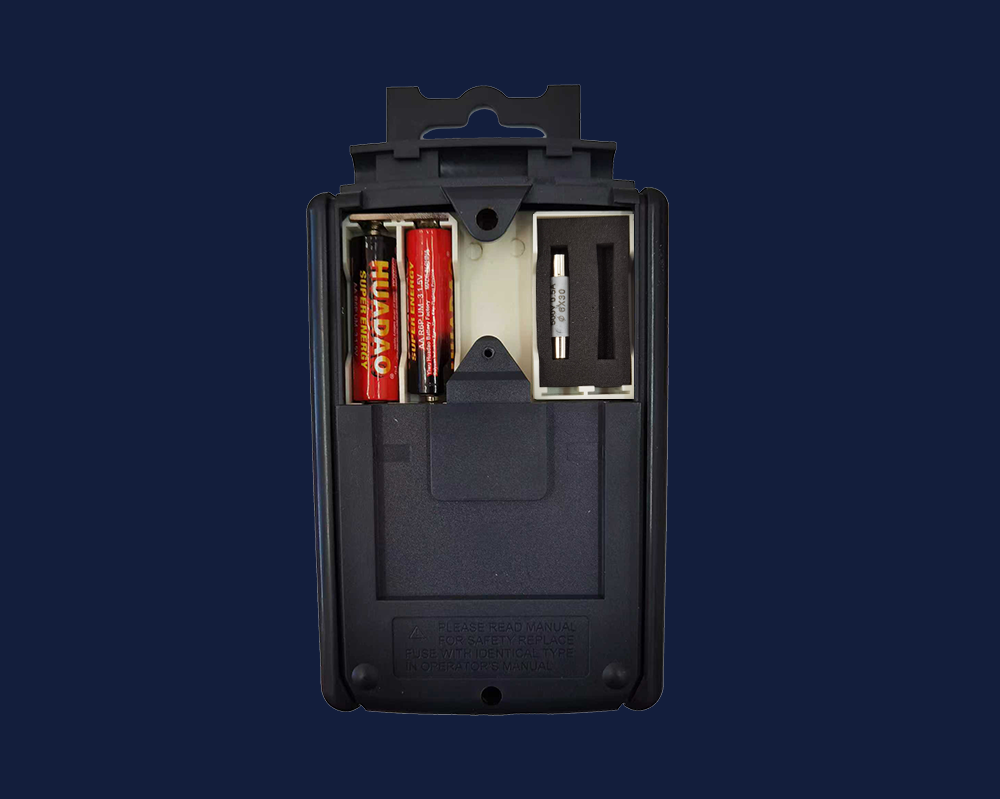

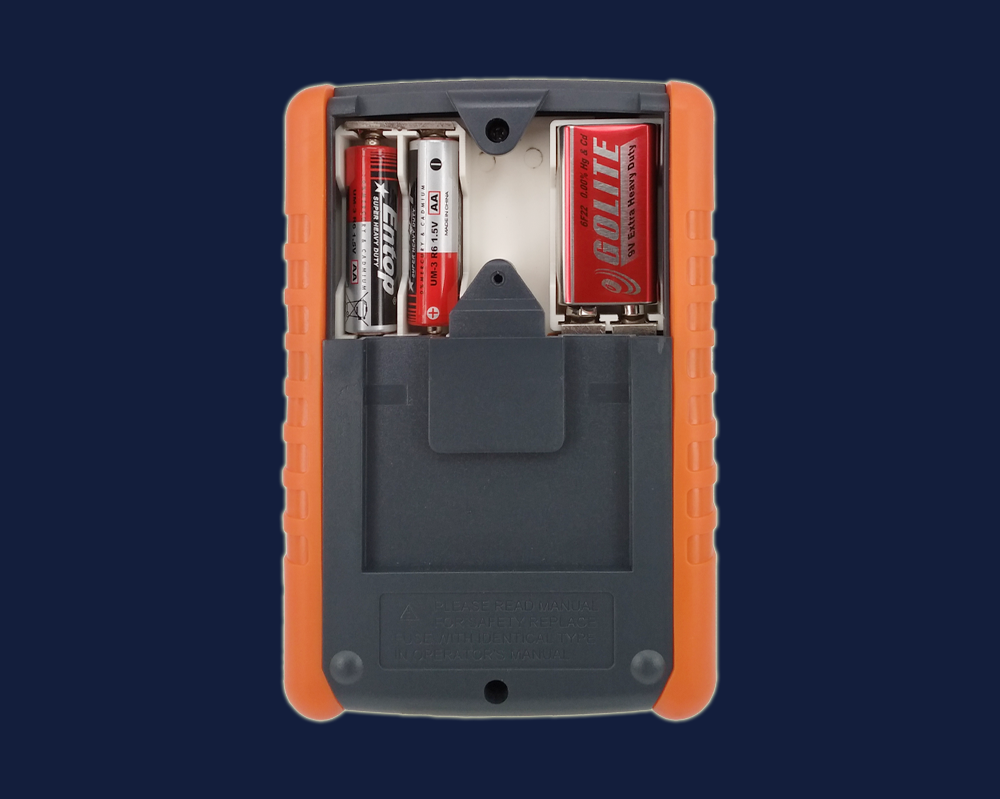

Unique desgin for the battery door for battery's easy replacement.
The supporter can not only support the meter in standing status but also can be used as a hanger when flipping over.
The electrical features:
adding 0-50Ω to the original resistance function which increases the accuracy in low resistance measurement.
The DC voltage below 25V with positive and negative readings is added to the circuit. The zero position is set in the middle position, so that the positive and negative reading can be indicated on left and right seperately.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
