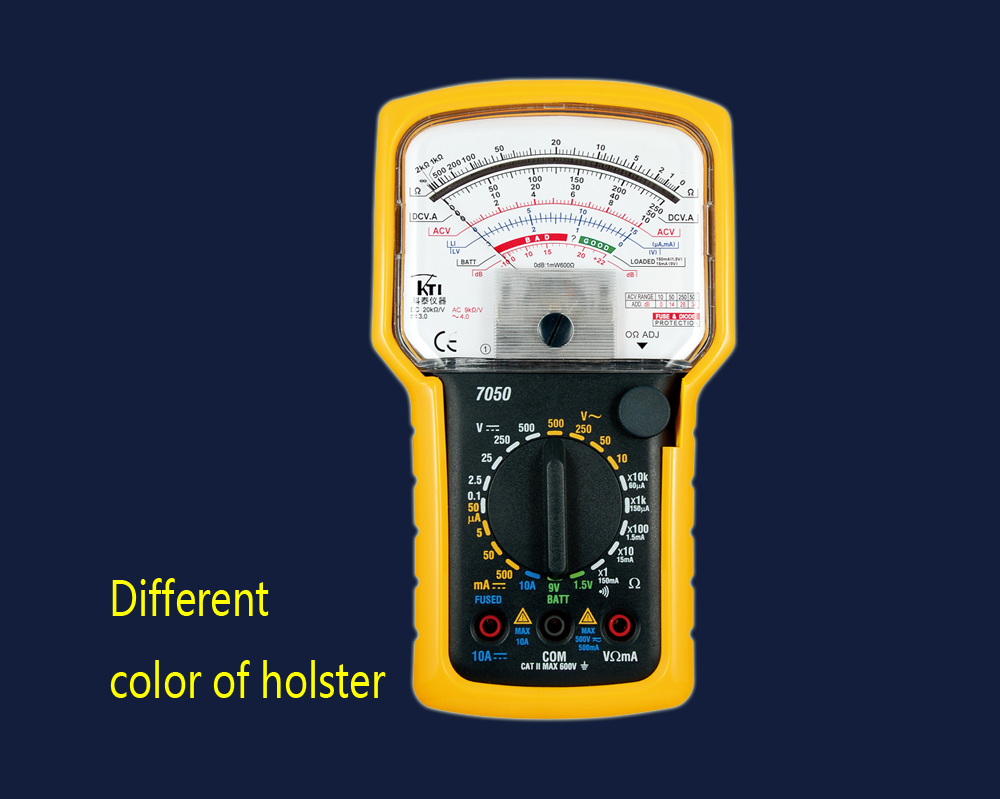

● Analogue multimeter in a handy compact housing
● Mirror scale feature for accurate reading
● 20 ranges in 7 functions
● Overload protection
● AC/DC voltage measurement up to 500V
● DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Audible continuity & diode tests
● LED test
● Battery test 1.5V & 9V
● Input impedence: 20KΩ/ VDC,9KΩ/ VAC

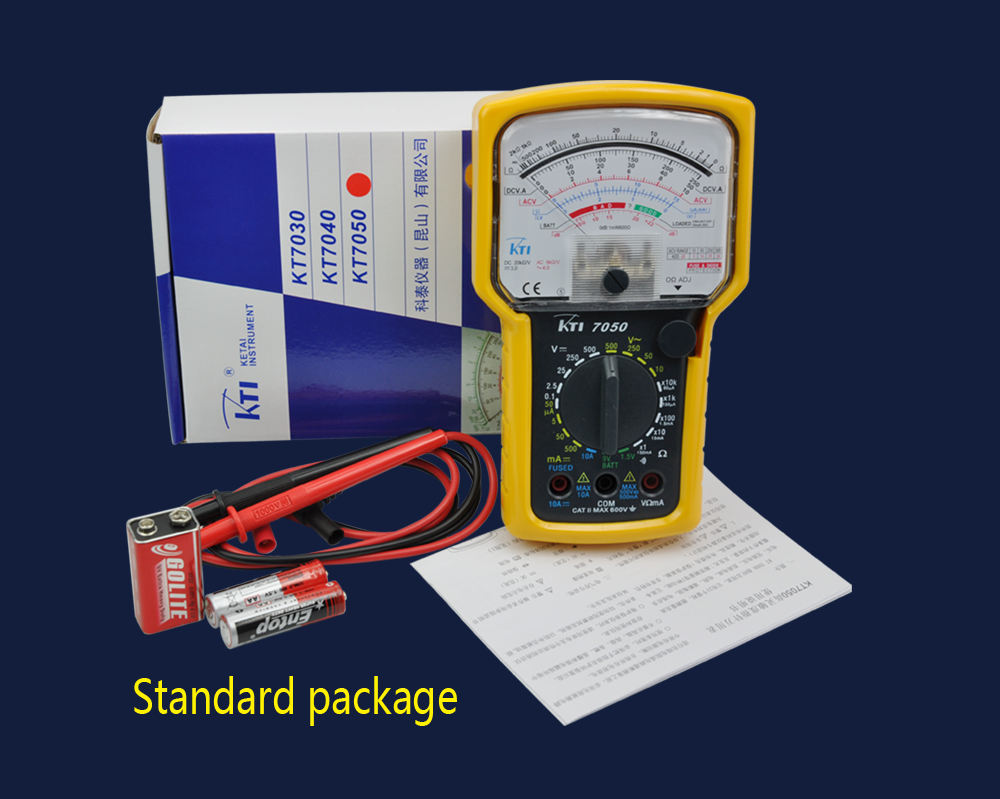

● Accessories included: 1.5V & 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/2.5/25/250/500V (±3.0% f.s)
AC Voltage 10/50/250/500V (±4.0% f.s)
DC Current 0.05m/5m/50m/500m/10A (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
Battery check 1.5V (150mA), 9V (15mA)
Continuity test Approx. 0⋯30Ω
dB measurement: -10~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 190x108x50mm
Weight Approx. 470g included battery
Measurement Category EN61010-1,CAT II,600V
This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
In regards of the usage of test leads, to prevent potential electrical shock, always put the finger behind the protection ring on the test probes.
Remember to discharge the capacitor to protect the meter from damaging in capacitor dscharging.
Return the used battery to qualified department for environment protection purpose.
