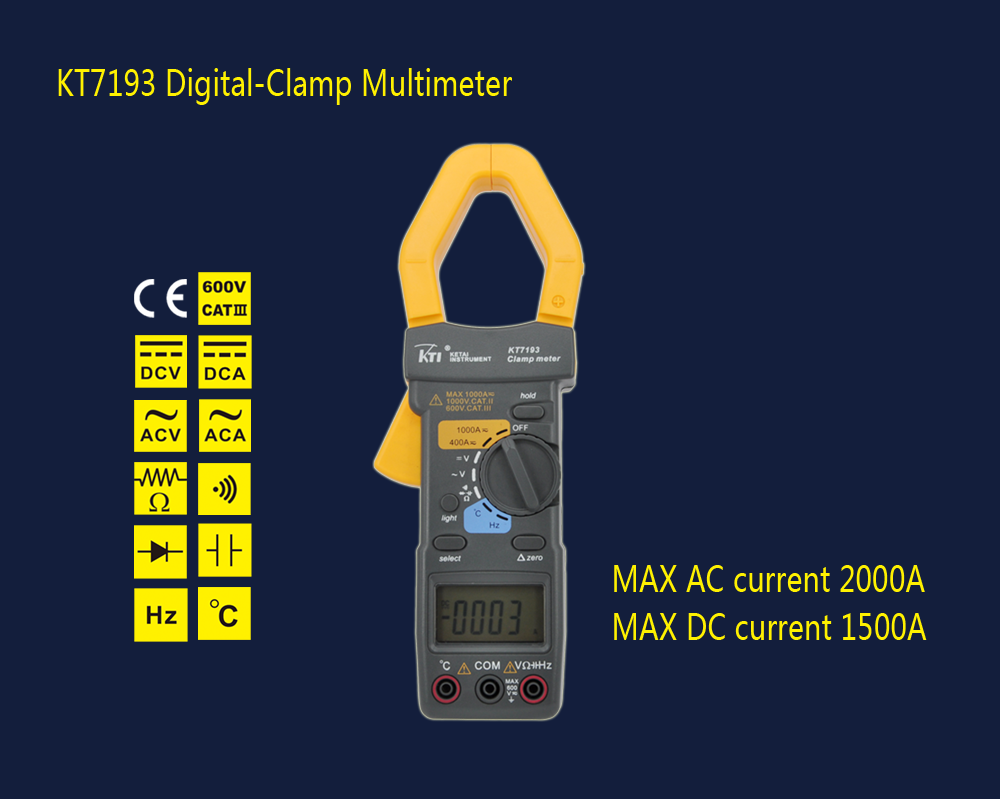

● 3 3/4 digits 3999 count
● Extra high DC/AC current measurement
● Data hold to capture measurements
● Backlit display is easy to read under any light condition
● AC current measurement up to 1500A
● DC current measurement up to 1500A
● DC/AC voltage, resistance, capacitance, frequency and temperature measurement
● Diode and continuity test
● Accessories included: 9V battery, carrying case, test leads, K typetemperature probe, English manual, gift box
SPECIFICATIONS
Jaw opening 55mm
DC Current 400/1500A ±(2.5%+10d)
AC Current 400/1500A ±(2.5%+10d)
DC Voltage 0.4/4/40/400/1000V ±(0.7%+1d) ±(0.8%+3d)
AC Voltage 4/40/400/700V ±(0.8%+5d) ±(1.0%+10d)
Capacitance 4n/40n/400n/4μ/100μF ±(4.0%+10d)
Resistance
400/4K/40K/400K/4M/40MΩ
±(1.2%+1d) ±(3%+3d)
Continuity and diode test Buzzer beeps lower than 90Ω
Frequency 40/400/4K/40K/2MHz ±(4.0%+10d)
Temperature
400~750℃(752~1382 oF)±(1.0%+5d)
0~400℃(32~752 oF) ±(1.0%+3d)
-40~0℃(-40~32 oF) ±(1.0%+6d)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 280x100x42mm
Weight Approx. 520g included battery
Measurement Category EN61010-1,CAT III,600V; CATII,1000V
In the measurement, only by clamping a single wire in the circuit being measured will get the current.When holding the wire, in order to minimize the displacement error always place the conductor at the center of the clamping head.

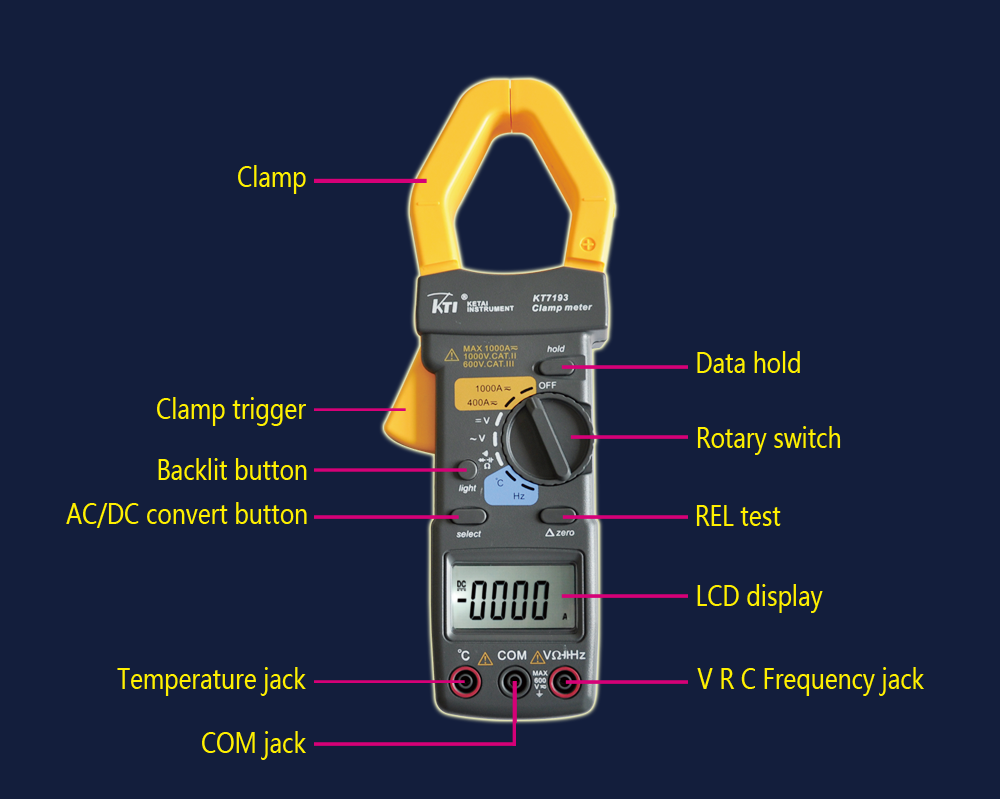

"+"is carved on the KT7193's clamp(lower right side),this physically means in measuring DC current if "-"shows on the LCD,the DC current's direction is
opposite from the current being measured by clamping which should be outflowing.
If "-"does not show, the current flowing through the clamp's direction is same as being measured by clamping which should be inflowing.
This is quite useful in identifying DC current's direction, especially helpful in identifying the DC generator's spinning direction.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
