● 11 ranges in 5 functions
● Data hold to capture measurements
● AC voltage measurement up to 600V
● DC voltage measurement up to 300V
● Resistance measurement up to 200KΩ
● Clamp meter for measuring AC current up to 2000A
● Accessories included: 1.5V battery, carrying bag, test leads, English manual, gift box
Jaw opening 58mm
DC Voltage 60/300V (±3.0% f.s)
AC Voltage 150/600V (±4.0% f.s)
AC Current 50/250/500/1000/2000A (±4.0%f.s)
Resistance 2K/200KΩ (±3.0% of full arc)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Weight Approx. 510g included battery
Measurement Category EN61010-1,CAT II,1000V; CAT III,600V
The analog clamp meter senses the current by conductor and through internal conversion the meter head indicates the reading.
In the measurement, only by clamping a single wire in the circuit being measured will get the current.When holding the wire, in order to minimize the displacement error always place the conductor at the center of the clamping head.

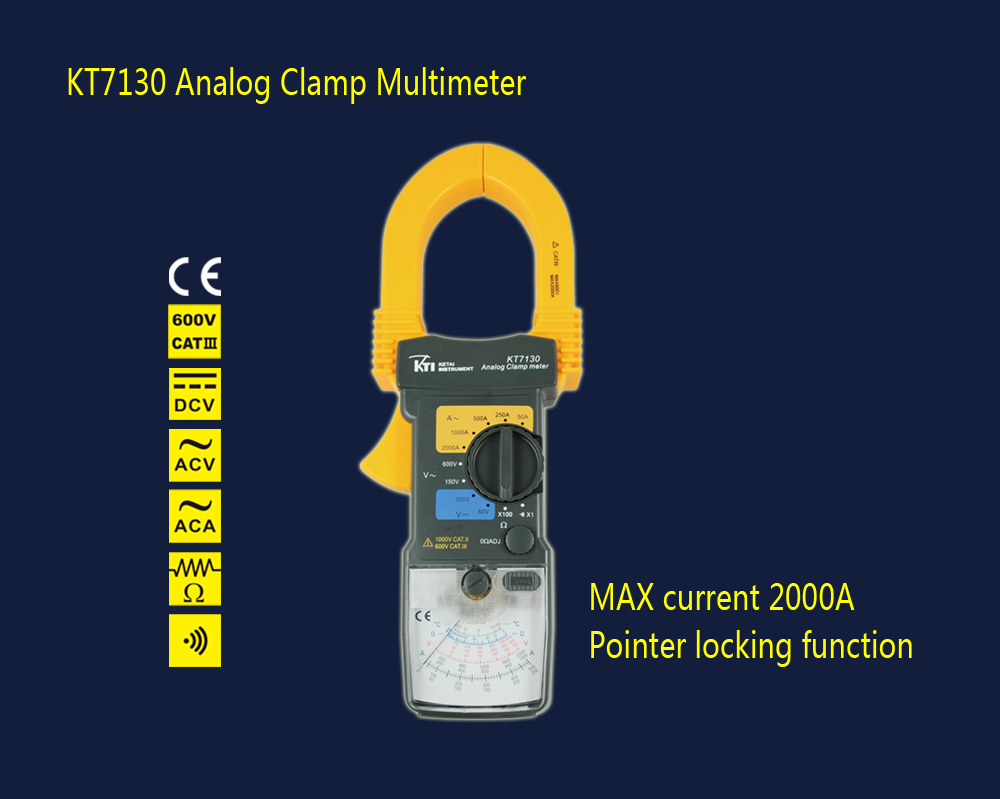

The KT7130 analog clamp meter features the lock pin function, which can also be considered as "hold" function. In some measurements, the reading of the pointer cannot be seen directly,in such cases, the lock pin can be pushed to lock the pointer and hold the reading after the measurement is completed, release the lock pin to return to normal state.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
